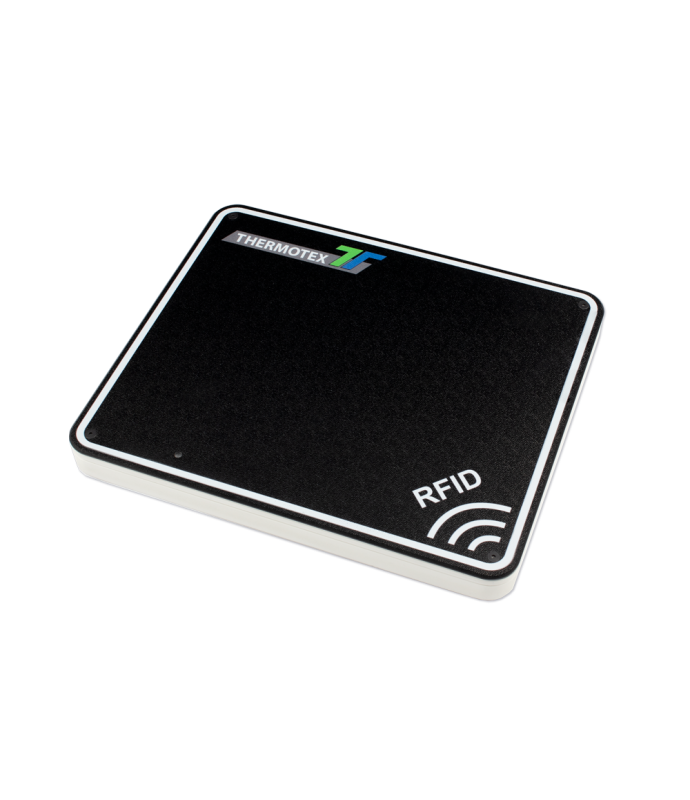

HF-/UHF System Compact Plus

Two technologies in one reading system

UHF System Compact plus
Art. no. 22488

HF/UHF System Compact plus
Art. no. 23127

HF System Compact plus
Art. no. 23320

for logging of HF and UHF transponders using only one reading system

surface made of antistatic material

especially for metal tables (shielded)

integrated LED indicates operating states

Applications

Wäschereien & Mietwäschereien

Industrie & Konfektion

Technical data
Downloads

Areas of application	for sorting laundry at the laundry exit or for interim control during the process
Reading	single and/or conditional pile reading
Antenna dim. (L x W x H)	310 x 260 x 30,5 mm
Reader dim.	integriert in Antenne

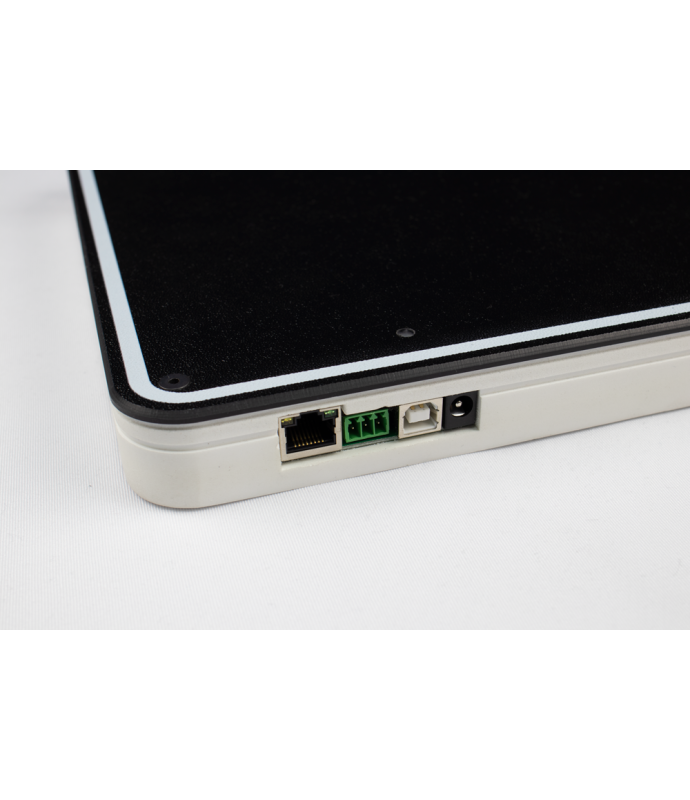

Interfaces	Ethernet, USB Virtuell COM + HID, RS-232
Protection class	IP 20

Tag use

Tag	HF tag			UHF tag
Tag	mm	mm	mm
Reading distance
UHF Compact Plus				> 1,1m (Pile with max. 5 transponders)
HF-/UHF Compact	0-6 cm	0-12 cm	0-15 cm	> 1,5m (Pile with max. 5 transponders)
HF Compact Plus	max. 7 cm	max. 12 cm	max. 15 cm

RFID Technology

File pdf, 5.7 MB

Format 0 S.

Download
