HF system MID-Range table

HF-System Mid-Range Table | Art. no. 18533


Our innovative scanning systems are cutting-edge and ensure optimal laundry sorting thanks to the corresponding tags.

  • available as under-sink system

The pictured system includes:

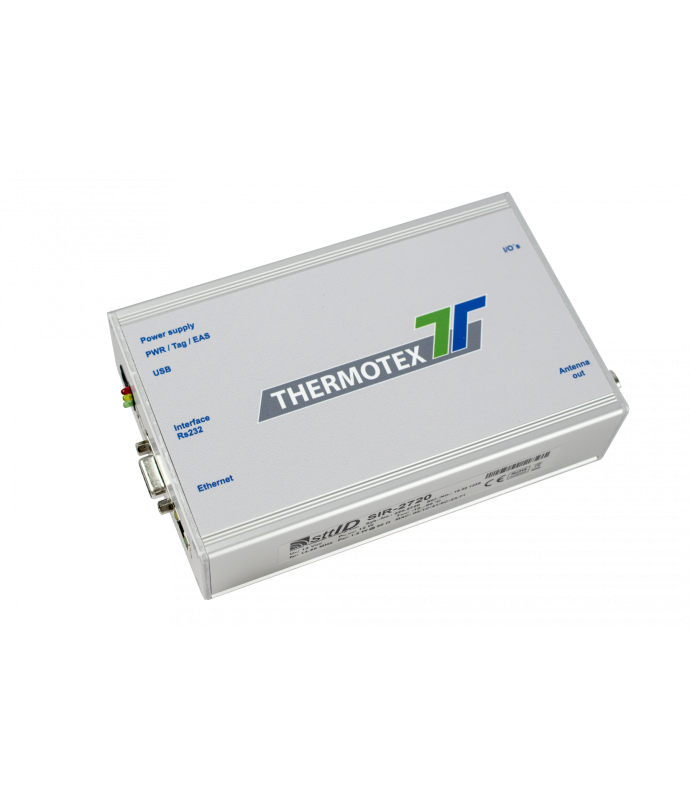

  • HF reader

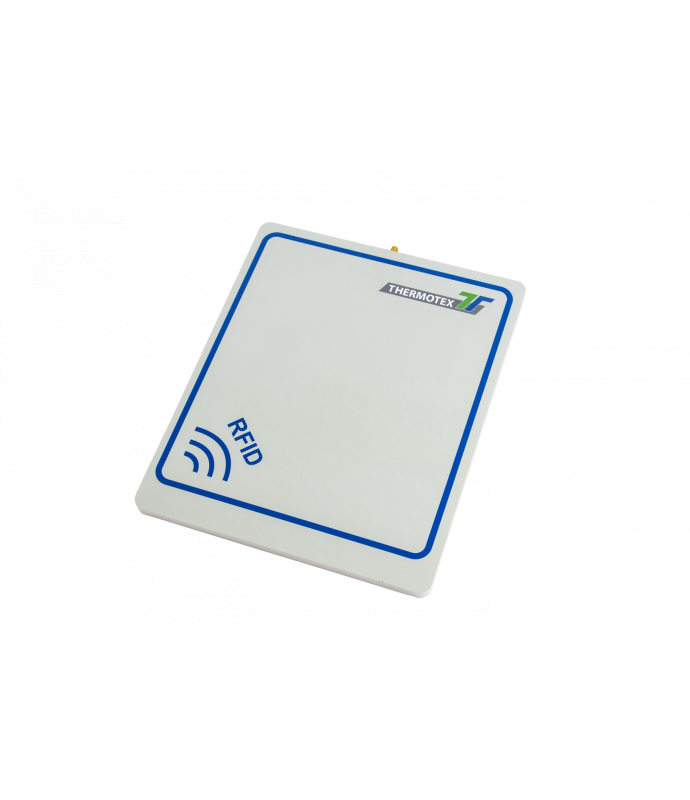

  • HF antenna

Applications

Wäschereien & Mietwäschereien

Application

residents‘ laundry, workwear, mops / dusters,
bathrobes, towels etc.

Reading

single, pile

Transponder use
(in mm)

and

reading distance

Transponder 7mm2

Transponder 11mm2

Transponder 16mm

0-5 cm

0-15 cm

0-20 cm

Antenna dim.
(L x W x H)

300 x 250 x 12 mm

Decoder dim.
(L x W x H)

170 x 105 x 45mm

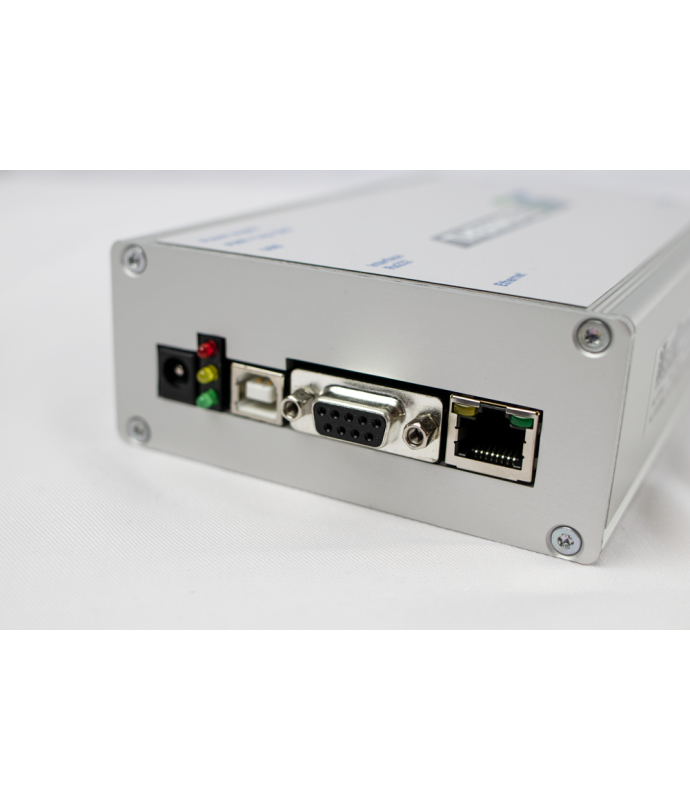

Interfaces

RS232, Ethernet, USB
flyer transponder technik GB v5 web

RFID Technology

File pdf, 5.7 MB
Format 0 S.
Download
