UHF Box

Different variants • suitable for euro-pallets incl. pallet truck

THE MOST ACCURATE SINGLE CONTAINER SCANNING, 500 ITEMS IN 10 SECONDS

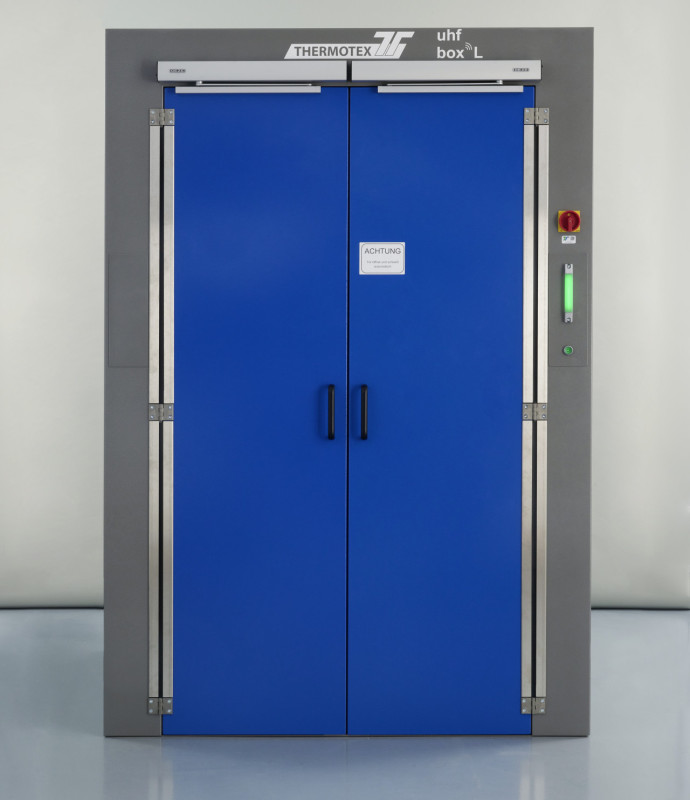

The UHF Box is available with one or two door pairs, depending on the situation in your company, or optionally with an automatic door operation system. Your chipped textiles are efficiently logged and read error-free. The doors lock during the scanning process. They can be opened again as soon as all textiles have been logged.

Are you a fan of easy solutions for optimal work processes? Then the UHF Box variant with self-opening and closing doors is perfect.

  • fast reader control technology with intelligent antenna illumination allows time-optimised detection
  • optionally
    • with automatic door operation
    • with glass insert

UHF PERSONNEL LOCK

  • UHF box as a lock for targeted control of goods flows
  • with touch display, coloured light signal and door handles
  • application: detection of textiles in incoming / outgoing goods in lock operation

RFID PROJECT


Application

Areas of application

logging of laundry items in wire mesh carts in goods receipt/dispatch

Tag use

F10F11, C2, C3

Reading

bulk reading

Interfaces

Ethernet, USB, RS 232

VARIANTS

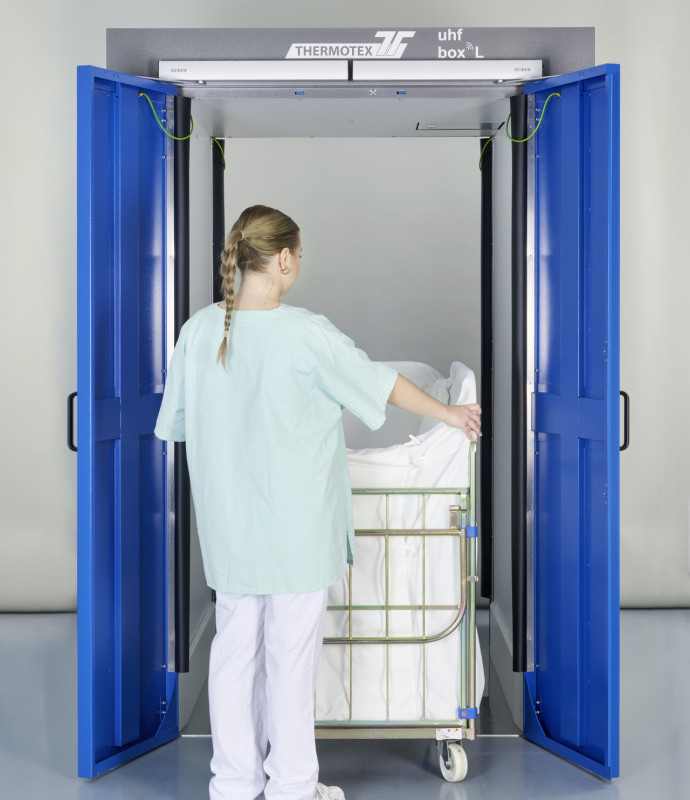

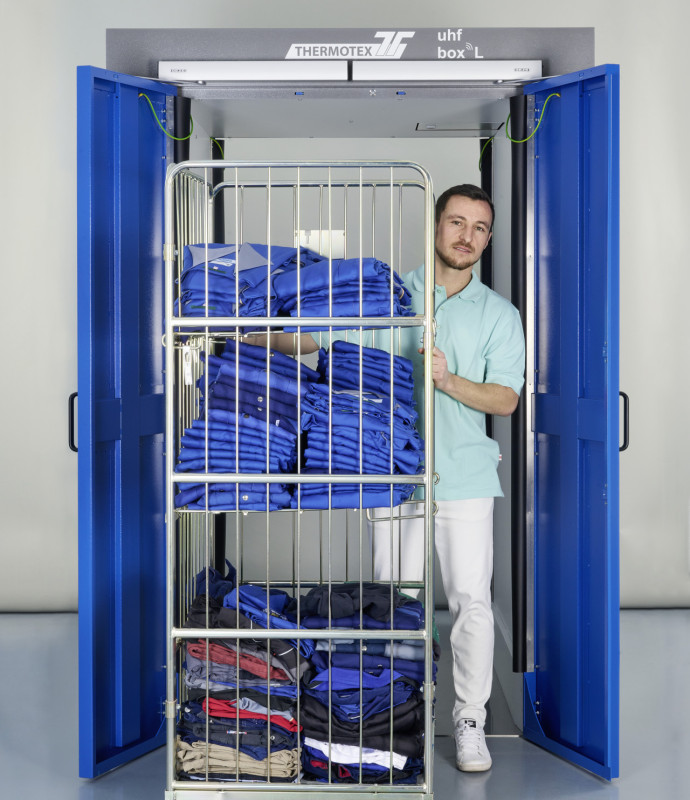

UHF Box
suitable for wire mesh containers

UHF Box gitterwagen
  • external dim. (WxDxH) 1,500 x 1,000 x 2,260 mm
  • inner dim. (WxDxH) 1,033 x 900 x 1,986 mm

UHF Box with one door pair | Art. No. 21595
UHF Box with two door pairs | Art. No. 21832

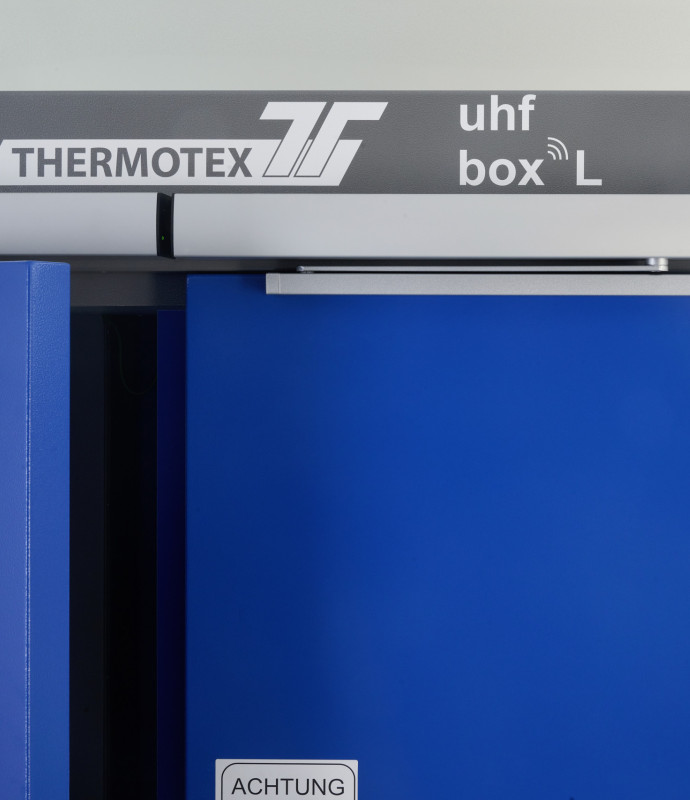

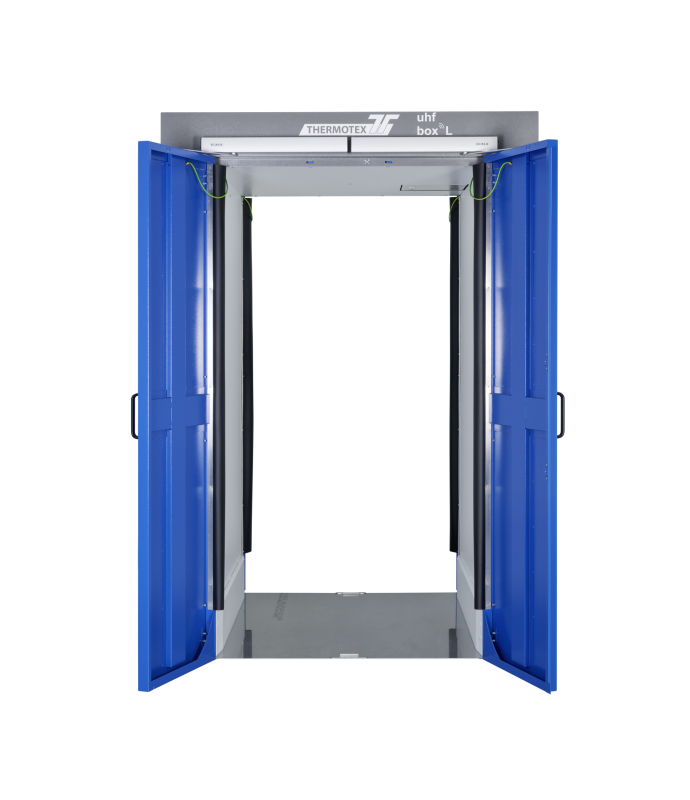

UHF Box L
suitable for euro-pallets

UHF Box europaletten1
  • external dim. (WxDxH) 1,500 x 1,500 x 2,260 mm
  • inner dim. (WxDxH) 1,033 x 1,400 x 1,986 mm

UHF Box with one door pair | Art. No. 21000
UHF Box with two door pairs | Art. No. 21822

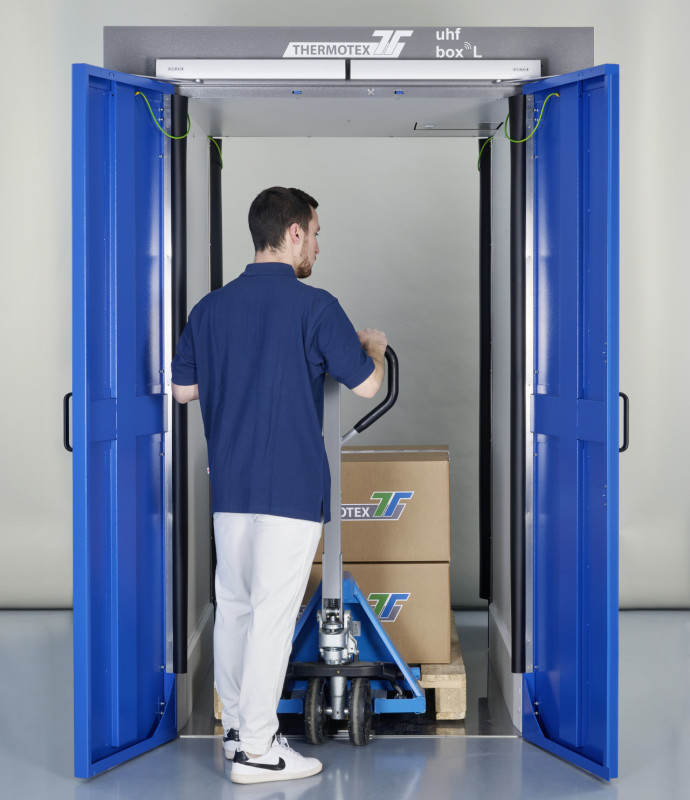

UHF Box XL suitable for euro-pallets incl. pallet truck

UHF Box europalette hubwagen
  • external dim. (WxDxH): 1,500 x 1,900 x 2,260 mm
  • inner dim. (WxDxH): 1,033 x 1,800 x 1,986 mm

UHF Box with one door pair | Art. No. 21833
UHF Box with two door pairs | Art. No. 21834



UHF PERSONNEL LOCK

UHF Personenschleuse

UHF Personnel lock L
Art. No. 23030

  • external dim. (WxDxH): 1.500 x 1.620 x 2.260 mm
  • inner dim. (WxDxH): 1.033 x 1.400 x 1.986 mm

UHF Personnel lock L+
Art. No. 22764

  • external dim. (WxDxH): 1.500 x 1.620 x 2.360 mm
  • inner dim. (WxDxH): 1.033 x 1.400 x 2.086 mm

Height-adjustable on request!

UHF Box
with one door pair
for placing at a wall

UHF Box
with two door pairs for
roll through for a better workflow

UHF personnel lock
with 2 door pairs and glass insert as visible lock



Grafiken UHF Box 1tuer





Grafiken UHF Box 2tueren





Grafiken UHF Box Schleuse



The UHF box is operated from one side The UHF box can be operated from both sides The UHF box must be operated from both sides.
