Thermo-Ident 1

for 10 mm-wide tapes

Art. no. 23620

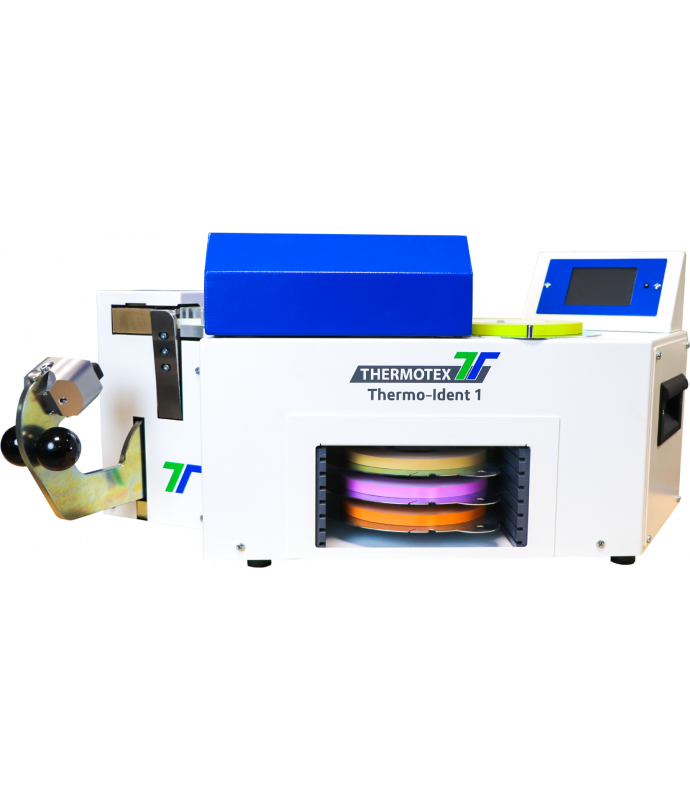

The Thermo-Ident 1 is a multifunctional device for fast and efficient one-time and permanent marking using the thermal transfer printing process. Printing, cutting and patching is possible in a very short time. A sharp print image is the result of individually designable labels. The machine also features the proven THERMOTEX control system and is designed for use with 10 mm wide ribbons.

stand-alone operation: or connection to a PC system via serial interfaces and Ethernet
fast and efficient: printing, cutting and heat sealing in the shortest of times
temporary and permanent marking: two applications possible with one machine
label length: adjusted automatically according to the text
tried and trusted THERMOTEX controls: with a clear, legible display and many useful functions (programmable function buttons, counter for hours of operation, language selection, automatic counting and numbering)
replacement tape storage space: stores up to 7 rolls
free design of labels: Data matrix, barcode, plain text and/or logo, single or multi-line and sharp printing thanks to thermal transfer printing technology enable individual solutions

Further advantages:

user-friendly touch display with individual quick access
easier tape threading
good transport thanks to carrying handles
more robust surface of the lid due to coarse coating
all connections collected on the back of the machine
optimized printing roller for even better labels and easier handling

New since 2022:

Pressure ball made of stable aluminium
Exchange system

Teflon very stable, even under extreme strain
Metal plate incl. Teflon foil can be changed quickly and easily

Applications

Wäschereien & Mietwäschereien

Altenheim & Pflegebereich

Suitable resources
Suitable accessories
Technical data
Downloads

Connection	220 - 240 V, 50 - 60 Hz, 500 W
Width	560 mm
Height	310 mm
Depth	460 mm
Weight	30 kg
Operating pressure	4 - 6 bar

Flyer Temporaere Dauerkafte Kennzeichnung GB v2 web

Temporary Marking

File pdf, 1.7 MB

Format 8 S.

Download
